Apple Wireless Keyboard A1016

Apple Wireless Keyboard A1016 is the Bluetooth wireless variant of the Apple Keyboard A1048 from 2003 to 2007. Pick 1 up for S$5 in Aug 2023, a little dirty but working. Uses 4 x AA batteries.

A1016 ISO

Layers

The keyboard consists of, from top to bottom:

PCB

The PCB is locked down via 2 x Y (tri-wing) screws. A 1.5 tri-wing screwdriver can be purchased for S$0.69.

The single PCB contains BCM2040 (Product Brief) controller and a SST39LF020 2Mbit flash.

PCB Top

On the left of the PCB, there are 2 x black and 1 x brown connectors to the keyboard membrane / matrix.

These 3 connectors are Kyocera 6232 series, 10 positions (ie, 10 pins), 1.0mm pitch, non-ZIF, SMT mounted, FPC (flexible printed circuits) / FFC (flexible flat cable).

The difference between black & brown is: black has top contacts, whereas brown has bottom contacts. The meaning of top/bottom is relative to the PCB: top means away from the PCB, bottom means nearest to the PCB.

PCB Bottom

Membranes

There’re 2 membranes, top and bottom, separated by a spacer membrane.

I’ve labelled the keys ROW_COLUMN with rows (bottom to top) 0 to 5, and columns (left to right) A to U. Key 0A at the bottom left, to key 5U at the top right.

Membrane Top

Traces in the top membrane leave the membrane at around the 5Q key area, to connect to the PCB. These traces leave in 2 “bunches”, the left bundle contains 12 tracks, the right 7 tracks. All in 19 tracks, these are the “columns” in the keyboard matrix.

Membrane Bottom

The bottom membrane is “flipped”, so Key 0A is at the bottom right, and key 5U is at the top left.

Traces in this bottom membrane also leave the membrane at around the 5Q key area, to connect to the PCB. These traces leave in 2 “bunches”, the left bundle contains 3 tracks, the right 7 tracks. All in 10 tracks, these are the “rows” in the keyboard matrix.

Hence, the size of the keyboard matrix is 10 x 19, requiring 29 connections to the PCB, via 3 x 10pin Kyocera 6232 connectors.

Mapping

    A 1 (left) B 2 C 3 D 4 E 5 F 6 G 7 H 8 I 9 J 10 K 11 L 12 M 13 N 14 O 15 P 16 Q 17 R 18 S 19 (right)
Row 9 (left) KC_ESCAPE KC_F1 KC_F2 KC_F3 KC_F4 KC_F5 KC_UP KC_RIGHT_CTRL KC_RIGHT_SHIFT KC_F16 KC_NO KC_NO KC_F6 KC_KP_4 KC_KP_5 KC_NO KC_KP_6 KC_KP_PLUS KC_AUDIO_VOL_DOWN
Row 8 KC_GRAVE KC_Z KC_X KC_C KC_V KC_B KC_N KC_NO KC_NO KC_F13 KC_NO KC_LCMD KC_M KC_COMMA KC_DOT KC_NO KC_SLASH KC_SPACE KC_AUDIO_VOL_UP
Row 7 KC_F12 KC_NO KC_NO KC_KP_DOT KC_KP_0 KC_LEFT KC_DOWN KC_NO KC_NO KC_END KC_NO KC_NO KC_RIGHT KC_KP_1 KC_KP_2 KC_RCMD KC_KP_3 KC_KP_ENTER KC_AUDIO_MUTE
Row 6 KC_CAPS_LOCK KC_A KC_S KC_D KC_F KC_G KC_H KC_NO KC_NO KC_DELETE KC_LEFT_ALT KC_NO KC_J KC_K KC_L KC_NO KC_SEMICOLON KC_QUOTE KC_MEDIA_EJECT
Row 5 KC_ENTER KC_F7 KC_F8 KC_EQUAL KC_BACKSPACE KC_NO KC_HOME KC_NO KC_BACKSLASH KC_F14 KC_NO KC_NO KC_PAGE_UP KC_NUM_LOCK KC_KP_EQUAL KC_NO KC_KP_SLASH KC_KP_ASTERISK KC_NO
Row 4 KC_F9 KC_F10 KC_F11 KC_RIGHT_BRACKET KC_NO KC_NO KC_NO KC_NO KC_NO KC_F15 KC_RIGHT_ALT KC_NO KC_PAGE_DOWN KC_KP_7 KC_KP_8 KC_NO KC_KP_9 KC_KP_MINUS KC_NO
Row 3 KC_NO KC_1 KC_2 KC_3 KC_4 KC_5 KC_6 KC_LEFT_CTRL KC_NO KC_NO KC_NO KC_NO KC_7 KC_8 KC_9 KC_NO KC_0 KC_MINUS KC_NO
Row 2 KC_TAB KC_Q KC_W KC_E KC_R KC_T KC_Y KC_NO KC_LEFT_SHIFT KC_NO KC_NO KC_NO KC_U KC_I KC_O KC_NO KC_P KC_LEFT_BRACKET KC_NO
Row 1 This track is used for Keycaps LED
Row 0 (right) This track is used for Keycaps LED

Note Column 12 controls only 1 key (LCMD), similarly Column 16 has only RCMD. This seems wasteful, but maybe necessary to have key rollover for the important ‘COMMAND’ key.

Given this mapping, 28 GPIO pins is needed on a MCU to control this keyboard. Ground for Keycaps LED can be taken from normal ground and GPIO is not needed.

MCU

28 GPIO pins (available for use) is a relatively high number for MCUs compatible with QMK. 1 suitable candidate is the RP2040. Docs for RP2040 is here.

Given its low cost, I’ve selected the RP2040 from WeAct Studio, Sep 2023.

WeAct RP2040 Pin Available for our use Our use WeAct RP2040 Function
GP0 Yes Col 1
GP1 Yes Col 2
GP2 Yes Col 3
GP3 Yes Col 4
GP4 Yes Col 5
GP5 Yes Col 6
GP6 Yes Col 7
GP7 Yes Col 8
GP8 Yes Col 9
GP9 Yes Col 10
GP10 Yes Col 11
GP11 Yes Col 12
GP12 Yes Col 13
GP13 Yes Col 14
GP14 Yes Col 15
GP15 Yes Col 16
GP16 Yes Col 17
GP17 Yes Col 18
GP18 Yes Col 19
GP19 Yes Row 9
GP20 Yes Row 8
GP21 Yes Row 7
GP22 Yes Row 6
GP23 No   User Key Button
GP24 Yes Keycaps LED
GP25 No   WeAct RP2040 LED
GP26 Yes Row 5
GP27 Yes Row 4
GP28 Yes Row 3
GP29 Yes Row 2

KLE

Visualize the keyboard @ Keyboard Layout Editor (KLE)

{name:"my_keyboard",author:"ivan98"},
[{w:1.5},"\nesc","\nF1","\nF2","\nF3","\nF4","\nF5","\nF6","\nF7","\nF8","\nF9","\nF10","\nF11","\nF12",{w:1.5},"\nF13",{x:0.25},"\nF14","\nF15","\nF16",{x:0.25},"\n🔉","\n🔊","\n🔈","\n⏏",{w:3.25,h:6,d:true},"Default Layer"],
["±\n§","!\n1","@\n2\n€","£\n3","$\n4","%\n5","^\n6","&\n7","*\n8","(\n9",")\n0","_\n-","+\n=",{w:2},"Backspace",{x:0.25},"\nhelp","\n↖","\n⇞",{x:0.25},"\n⌧","\n=","\n/","\n*"],
[{w:1.5},"\n⇥","\nQ","\nW","\nE","\nR","\nT","\nY","\nU","\nI","\nO","\nP","{\n[","}\n]",{x:0.25,w:1.25,h:2,w2:1.5,h2:1,x2:-0.25},"↩",{x:0.25},"delete\n⌦","\n↘","\n⇟",{x:0.25},"\n7","\n8","\n9","\n-"],
[{w:1.75},"\n⇪","\nA","\nS","\nD","\nF","\nG","\nH","\nJ","\nK","\nL",":\n;","\"\n'","|\n\\",{x:4.75},"\n4","\n5","\n6","\n+"],
[{w:1.25},"\n&#8679;","~\n`","\nZ","\nX","\nC","\nV","\nB","\nN","\nM","<\n,",">\n.","?\n/",{w:2.75},"\n&#8679;",{x:1.25},"\n↑",{x:1.25},"\n1","\n2","\n3",{h:2},"\n&#8965;"],
[{w:1.5},"\nctrl",{w:1.25},"alt\n&#8997;",{w:1.5},"\nA\n\n&#8984;",{a:7,w:6.5},"",{a:4,w:1.5},"\nA\n\n&#8984;",{w:1.25},"alt\n&#8997;",{w:1.5},"\nctrl",{x:0.25},"\n←","\n↓","\n→",{x:0.25,w:2},"\n0","\n."]

QMK

QMK (Quantum Mechanical Keyboard) is an open source community centered around developing computer input devices. Getting started guide is here.

config.h

#define LED_CAPS_LOCK_PIN GP24
#define LED_PIN_ON_STATE 1

#define RP2040_BOOTLOADER_DOUBLE_TAP_RESET
#define RP2040_BOOTLOADER_DOUBLE_TAP_RESET_LED GP25
#define RP2040_BOOTLOADER_DOUBLE_TAP_RESET_TIMEOUT 500U

my_keyboard.h

#pragma once
#include "quantum.h"

#define LAYOUT( \
    k0A, k0B, k0C, k0D, k0E, k0F, k0M, k4B, k4C, k5A, k5B, k5C, k2A, k1J,     k4J,  k5J, k0J,     k0S, k1S, k2S, k3S, \
    k6A, k6B, k6C, k6D, k6E, k6F, k6G, k6M, k6N, k6O, k6Q, k6R, k4D, k4E,     k4F,  k4G, k4M,     k4N, k4O, k4Q, k4R, \
    k7A, k7B, k7C, k7D, k7E, k7F, k7G, k7M, k7N, k7O, k7Q, k7R, k5D, k4A,     k3J,  k2J, k5M,     k5N, k5O, k5Q, k5R, \
    k3A, k3B, k3C, k3D, k3E, k3F, k3G, k3M, k3N, k3O, k3Q, k3R, k4I,                              k0N, k0O, k0Q, k0R, \
    k7I, k1A, k1B, k1C, k1D, k1E, k1F, k1G, k1M, k1N, k1O, k1Q, k0I,                k0G,          k2N, k2O, k2Q, k2R, \
    k6H, k3K, k1L,            k1R,                    k2P, k5K, k0H,          k2F,  k2G, k2M,     k2E, k2D \
) { \
	  { k0A,  k0B,    k0C,    k0D,  k0E,    k0F,    k0G,    k0H,    k0I,    k0J,    KC_NO,  KC_NO,  k0M,  k0N,  k0O,  KC_NO,  k0Q,  k0R,  k0S   }, \
	  { k1A,  k1B,    k1C,    k1D,  k1E,    k1F,    k1G,    KC_NO,  KC_NO,  k1J,    KC_NO,  k1L,    k1M,  k1N,  k1O,  KC_NO,  k1Q,  k1R,  k1S   }, \
	  { k2A,  KC_NO,  KC_NO,  k2D,  k2E,    k2F,    k2G,    KC_NO,  KC_NO,  k2J,    KC_NO,  KC_NO,  k2M,  k2N,  k2O,  k2P,    k2Q,  k2R,  k2S   }, \
	  { k3A,  k3B,    k3C,    k3D,  k3E,    k3F,    k3G,    KC_NO,  KC_NO,  k3J,    k3K,    KC_NO,  k3M,  k3N,  k3O,  KC_NO,  k3Q,  k3R,  k3S   }, \
	  { k4A,  k4B,    k4C,    k4D,  k4E,    k4F,    k4G,    KC_NO,  k4I,    k4J,    KC_NO,  KC_NO,  k4M,  k4N,  k4O,  KC_NO,  k4Q,  k4R,  KC_NO }, \
	  { k5A,  k5B,    k5C,    k5D,  KC_NO,  KC_NO,  KC_NO,  KC_NO,  KC_NO,  k5J,    k5K,    KC_NO,  k5M,  k5N,  k5O,  KC_NO,  k5Q,  k5R,  KC_NO }, \
	  { k6A,  k6B,    k6C,    k6D,  k6E,    k6F,    k6G,    k6H,    KC_NO,  KC_NO,  KC_NO,  KC_NO,  k6M,  k6N,  k6O,  KC_NO,  k6Q,  k6R,  KC_NO }, \
	  { k7A,  k7B,    k7C,    k7D,  k7E,    k7F,    k7G,    KC_NO,  k7I,    KC_NO,  KC_NO,  KC_NO,  k7M,  k7N,  k7O,  KC_NO,  k7Q,  k7R,  KC_NO } \
}

info.json

{
    "manufacturer": "ivan98",
    "keyboard_name": "my_keyboard",
    "maintainer": "ivan98",
    "bootloader": "rp2040",
    "processor": "RP2040",
    "features": {
        "bootmagic": true,
        "command": false,
        "console": true,
        "extrakey": false,
        "mousekey": false,
        "nkro": true
    },
    "matrix_pins": {
        "cols": ["GP9", "GP8", "GP7", "GP6", "GP5", "GP4", "GP3", "GP2", "GP1", "GP0",
			"GP11", "GP10", "GP13", "GP12", "GP15", "GP14", "GP17", "GP16", "GP18"],
        "rows": ["GP20", "GP19", "GP22", "GP21", "GP27", "GP26", "GP29", "GP28"]
    },
    "diode_direction": "COL2ROW",
    "usb": {
        "device_version": "1.0.0",
        "pid": "0x0200",
        "vid": "0xFEED"
    },
    "layouts": {
        "LAYOUT": {
            "layout": [
                {"x":0, "y":0, "w":1.5}, {"x":1.5, "y":0}, {"x":2.5, "y":0}, {"x":3.5, "y":0}, {"x":4.5, "y":0}, {"x":5.5, "y":0}, {"x":6.5, "y":0}, {"x":7.5, "y":0}, {"x":8.5, "y":0}, {"x":9.5, "y":0}, {"x":10.5, "y":0}, {"x":11.5, "y":0}, {"x":12.5, "y":0}, {"x":13.5, "y":0, "w":1.5}, {"x":15.25, "y":0}, {"x":16.25, "y":0}, {"x":17.25, "y":0}, {"x":18.5, "y":0}, {"x":19.5, "y":0}, {"x":20.5, "y":0}, {"x":21.5, "y":0},
                {"x":0, "y":1}, {"x":1, "y":1}, {"x":2, "y":1}, {"x":3, "y":1}, {"x":4, "y":1}, {"x":5, "y":1}, {"x":6, "y":1}, {"x":7, "y":1}, {"x":8, "y":1}, {"x":9, "y":1}, {"x":10, "y":1}, {"x":11, "y":1}, {"x":12, "y":1}, {"x":13, "y":1, "w":2}, {"x":15.25, "y":1}, {"x":16.25, "y":1}, {"x":17.25, "y":1}, {"x":18.5, "y":1}, {"x":19.5, "y":1}, {"x":20.5, "y":1}, {"x":21.5, "y":1},
                {"x":0, "y":2, "w":1.5}, {"x":1.5, "y":2}, {"x":2.5, "y":2}, {"x":3.5, "y":2}, {"x":4.5, "y":2}, {"x":5.5, "y":2}, {"x":6.5, "y":2}, {"x":7.5, "y":2}, {"x":8.5, "y":2}, {"x":9.5, "y":2}, {"x":10.5, "y":2}, {"x":11.5, "y":2}, {"x":12.5, "y":2}, {"x":13.75, "y":2, "w":1.25, "h":2}, {"x":15.25, "y":2}, {"x":16.25, "y":2}, {"x":17.25, "y":2}, {"x":18.5, "y":2}, {"x":19.5, "y":2}, {"x":20.5, "y":2}, {"x":21.5, "y":2},
                {"x":0, "y":3, "w":1.75}, {"x":1.75, "y":3}, {"x":2.75, "y":3}, {"x":3.75, "y":3}, {"x":4.75, "y":3}, {"x":5.75, "y":3}, {"x":6.75, "y":3}, {"x":7.75, "y":3}, {"x":8.75, "y":3}, {"x":9.75, "y":3}, {"x":10.75, "y":3}, {"x":11.75, "y":3}, {"x":12.75, "y":3}, {"x":18.5, "y":3}, {"x":19.5, "y":3}, {"x":20.5, "y":3}, {"x":21.5, "y":3},
                {"x":0, "y":4, "w":1.25}, {"x":1.25, "y":4}, {"x":2.25, "y":4}, {"x":3.25, "y":4}, {"x":4.25, "y":4}, {"x":5.25, "y":4}, {"x":6.25, "y":4}, {"x":7.25, "y":4}, {"x":8.25, "y":4}, {"x":9.25, "y":4}, {"x":10.25, "y":4}, {"x":11.25, "y":4}, {"x":12.25, "y":4, "w":2.75}, {"x":16.25, "y":4}, {"x":18.5, "y":4}, {"x":19.5, "y":4}, {"x":20.5, "y":4}, {"x":21.5, "y":4, "h":2},
                {"x":0, "y":5, "w":1.5}, {"x":1.5, "y":5, "w":1.25}, {"x":2.75, "y":5, "w":1.5}, {"x":4.25, "y":5, "w":6.5}, {"x":10.75, "y":5, "w":1.5}, {"x":12.25, "y":5, "w":1.25}, {"x":13.5, "y":5, "w":1.5}, {"x":15.25, "y":5}, {"x":16.25, "y":5}, {"x":17.25, "y":5}, {"x":18.5, "y":5, "w":2}, {"x":20.5, "y":5}
            ]
        }
    }
}

keymaps/default/keymap.c

#include QMK_KEYBOARD_H

const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
    /*
     * ┌─────┬───┬───┬───┬───┬───┬───┬───┬───┬───┬───┬───┬───┬─────┐ ┌───┬───┬───┐ ┌───┬───┬───┬───┐
     * │Esc  │F1 │F2 │F3 │F4 │F5 │F6 │F7 │F8 │F9 │F10│F11│F12│ F13 │ │PSc│Scr│Pse│ │VDn│VUp│VMu│Eja│
     * ├───┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─────┤ ├───┼───┼───┤ ├───┼───┼───┼───┤
     * │ ` │ 1 │ 2 │ 3 │ 4 │ 5 │ 6 │ 7 │ 8 │ 9 │ 0 │ - │ = │ Backsp│ │Ins│Hom│PgU│ │Clr│ = │ / │ * │
     * ├───┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─────┤ ├───┼───┼───┤ ├───┼───┼───┼───┤
     * │ Tab │ Q │ W │ E │ R │ T │ Y │ U │ I │ O │ P │ [ │ ] │     │ │Del│End│PgD│ │ 7 │ 8 │ 9 │ - │
     * ├─────┴┬──┴┬──┴┬──┴┬──┴┬──┴┬──┴┬──┴┬──┴┬──┴┬──┴┬──┴┬──┴┐ Ent│ └───┴───┴───┘ ├───┼───┼───┤───┤
     * │ Caps │ A │ S │ D │ F │ G │ H │ J │ K │ L │ ; │ ' │ \ │    │               │ 4 │ 5 │ 6 │ + │
     * ├────┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴─┬─┴───┴────┤     ┌───┐     ├───┼───┼───┼───┤
     * │Shft│ ` │ Z │ X │ C │ V │ B │ N │ M │ , │ . │ / │    Shift │     │ ↑ │     │ 1 │ 2 │ 3 │   │
     * ├────┴┬──┴─┬─┴───┼───┴───┴───┴───┴───┴───┴─┬─┴───┼────┬─────┤ ┌───┼───┼───┐ ├───┴───┼───┤Ent│
     * │Ctrl │Alt │Cmd  │                         │  Cmd│ Alt│ Ctrl│ │ ← │ ↓ │ → │ │   0   │ . │   │
     * └─────┴────┴─────┴─────────────────────────┴─────┴────┴─────┘ └───┴───┴───┘ └───────┴───┴───┘
     */
    [0] = LAYOUT(
        KC_ESC,  KC_F1,   KC_F2,   KC_F3, KC_F4, KC_F5, KC_F6, KC_F7,  KC_F8, KC_F9,   KC_F10,  KC_F11,  KC_F12,  KC_F13,     KC_F14, KC_F15,  KC_F16,     KC_KB_VOLUME_DOWN,KC_KB_VOLUME_UP,KC_KB_MUTE,KC_MEDIA_EJECT,
        KC_NUBS, KC_1,    KC_2,    KC_3,  KC_4,  KC_5,  KC_6,  KC_7,   KC_8,  KC_9,    KC_0,    KC_MINS, KC_EQL,  KC_BSPC,    KC_INS, KC_HOME, KC_PGUP,    KC_NUM,  KC_PEQL, KC_PSLS, KC_PAST,
        KC_TAB,  KC_Q,    KC_W,    KC_E,  KC_R,  KC_T,  KC_Y,  KC_U,   KC_I,  KC_O,    KC_P,    KC_LBRC, KC_RBRC, KC_ENT,     KC_DEL, KC_END,  KC_PGDN,    KC_P7,   KC_P8,   KC_P9,   KC_PMNS,
        KC_CAPS, KC_A,    KC_S,    KC_D,  KC_F,  KC_G,  KC_H,  KC_J,   KC_K,  KC_L,    KC_SCLN, KC_QUOT, KC_NUHS,                                          KC_P4,   KC_P5,   KC_P6,   KC_PPLS,
        KC_LSFT, KC_GRV,  KC_Z,    KC_X,  KC_C,  KC_V,  KC_B,  KC_N,   KC_M,  KC_COMM, KC_DOT,  KC_SLSH,      KC_RSFT,                 KC_UP,              KC_P1,   KC_P2,   KC_P3,   KC_PENT,
        KC_LCTL, KC_LALT, KC_LCMD,                                 KC_SPC,                    KC_RCMD,  KC_RALT,  KC_RCTL,    KC_LEFT, KC_DOWN, KC_RGHT,        KC_P0,       KC_PDOT
    )
};

Testing / Breadboarding

BOM

Setup

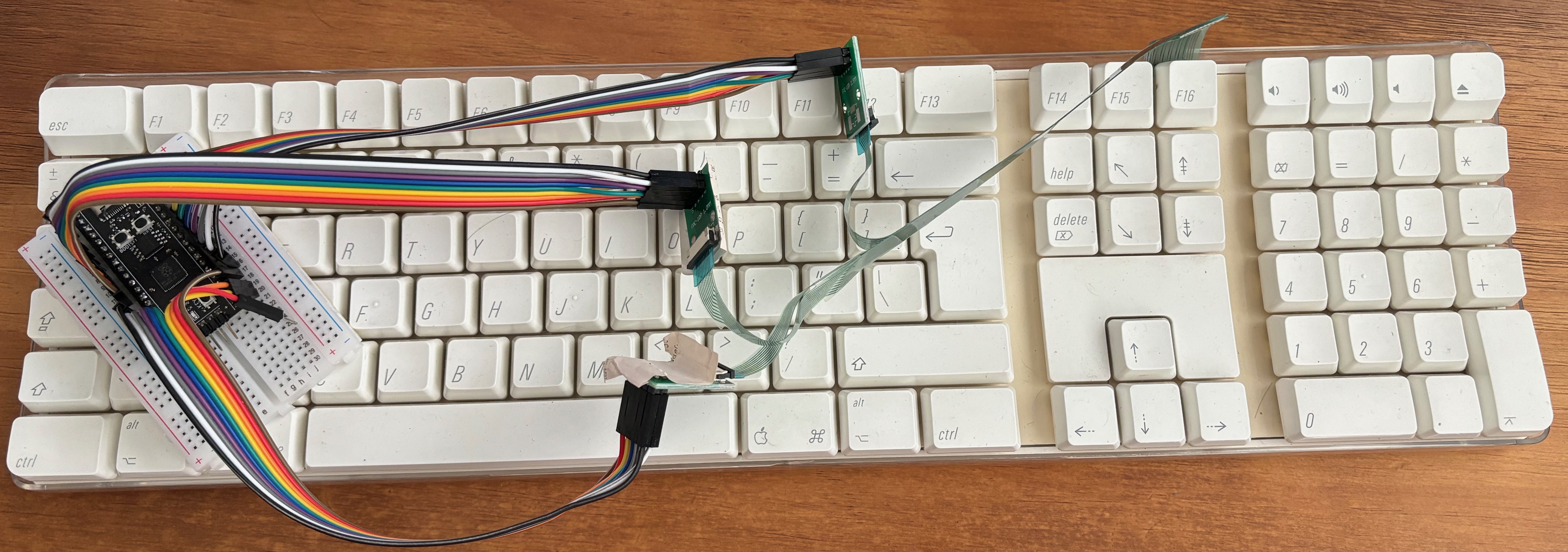

Test Setup

Connection

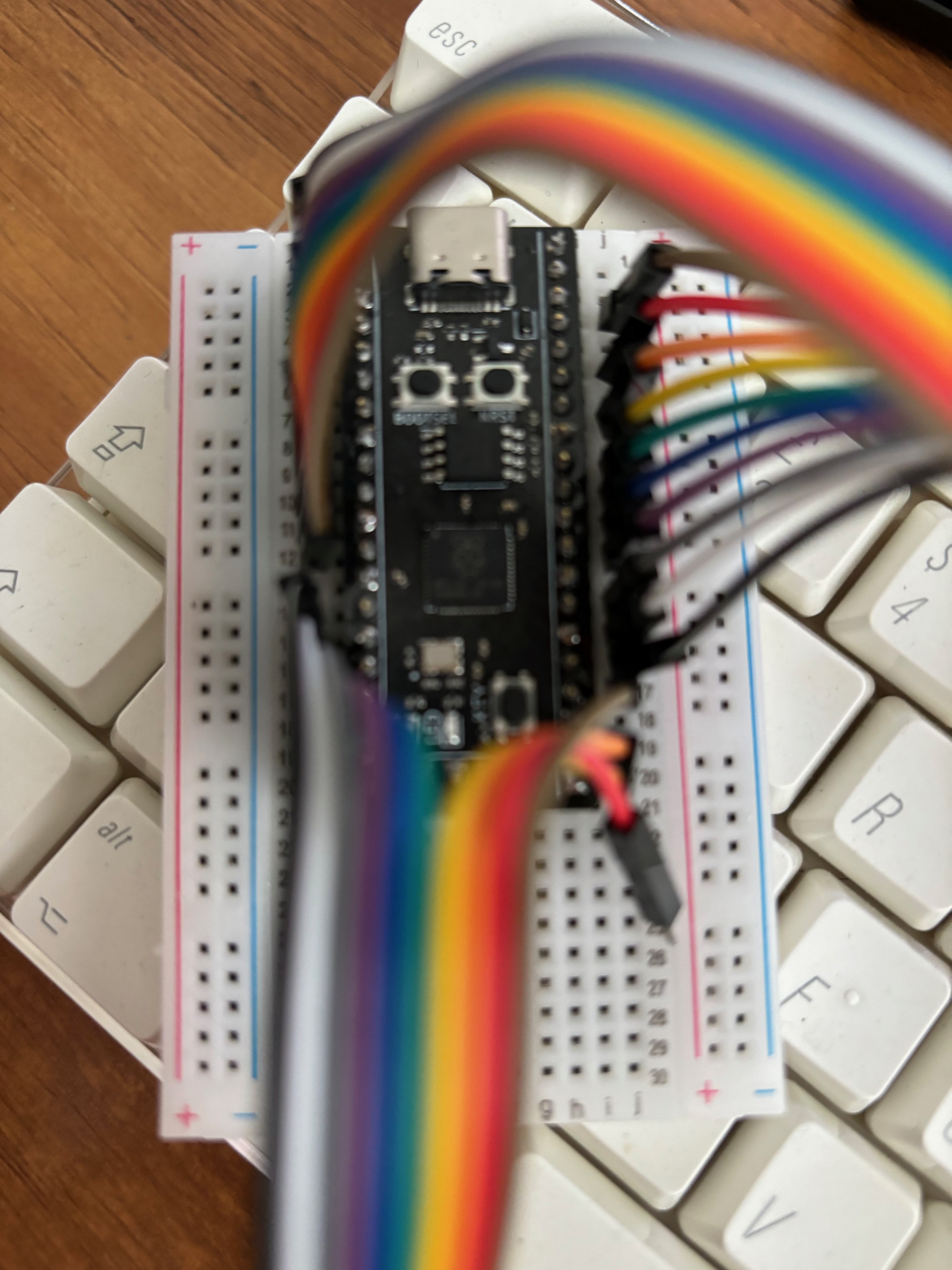

WeAct RP2040

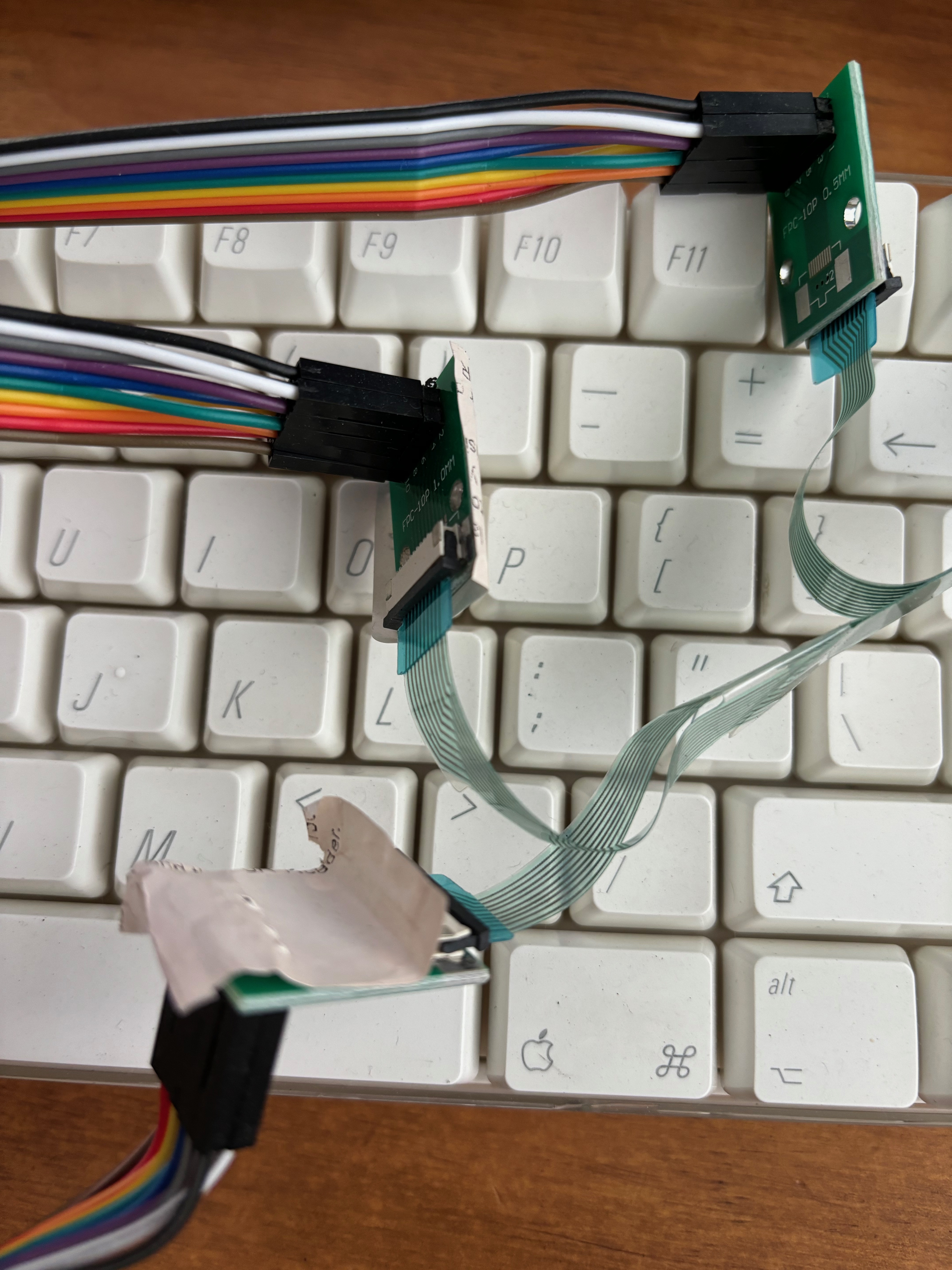

3 x Kyocera 6232 breakout board

If you observe carefully, you will notice 1 side of the PCB is 0.5mm pitch while the other side is 1mm pitch. This is a cost saving feature by the Chinese manufacturer. In our case where we want 1mm pitch, only the 1mm pitch side is populated with the Kyocera 6232 (compatible) connector.

Conclusion

It works.

Postscript

Issue

One often needs to type “cd <directory>”. When you type fast, you get “cd '<directory>”. Note the single quote after the space. This is the issue.

Analysis

Refer to keyboard matrix mapping above; the relevant section reproduce below:

    D 4 .. R 18
Row 8 KC_C .. KC_SPACE
Row 7 .. .. ..
Row 6 KC_D .. KC_QUOTE

Now if you’ve yet to release ‘d’ (or RP2040 feels that you’ve not release ‘d’), then the ghost ' key (Row 6 Column 18) will be inserted.

This seems to be a keyboard matrix design issue, as the sequence ‘cd ’ is often used, and this issue often surfaced. (Or perhaps QMK’s matrix scan rate is too low?)
